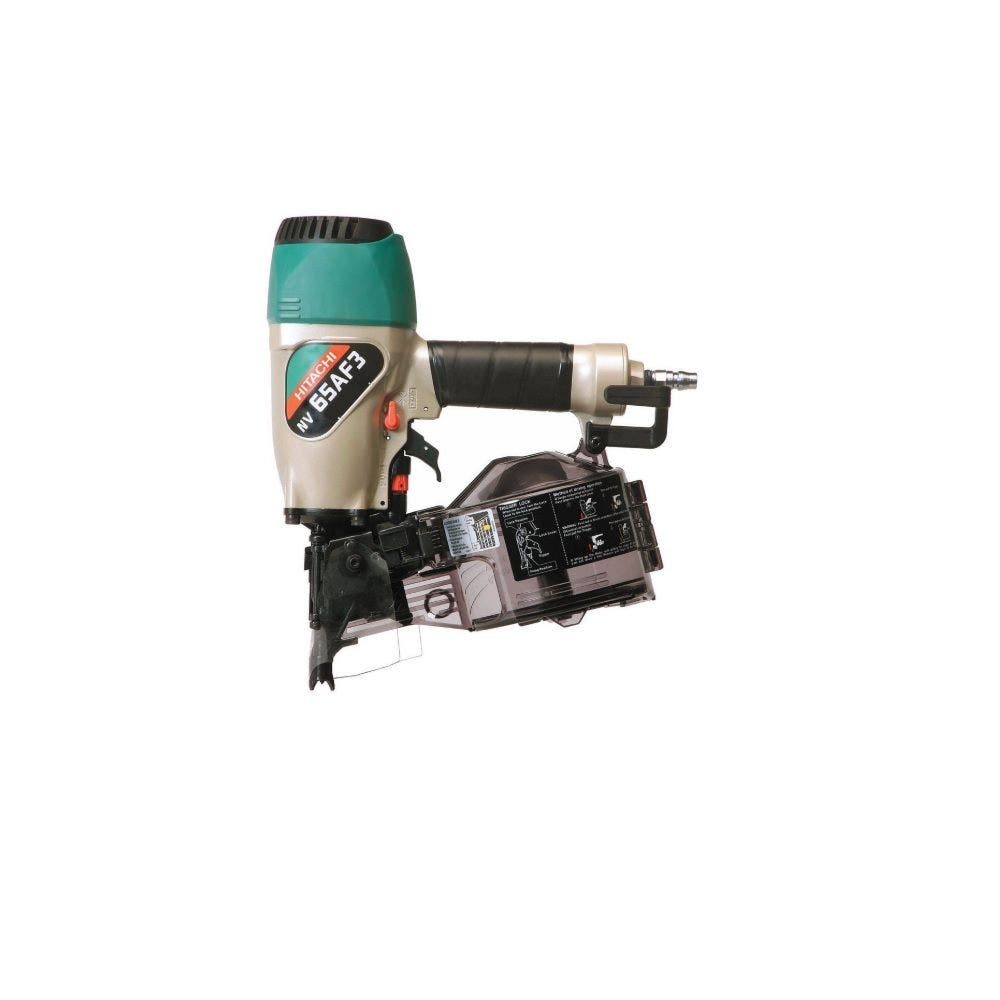

HiKOKI 32-65mm 15-Deg Air Nailer Coiler NV65AF3(H1Z)

Description

Description

The Hikoki 65 mm Wire and Plastic Collated Coil Nailer is perfect for decking and fencing, cladding, pallet, and crate manufacture. It is suitable for tile underlay, ply bracing and strapping, triple grips, and joist hangers. It effectively holds 200 to 400 wire collated nails or plastic collated nails. Nailer is designed to accommodate 4.8 to 6 mm D-head diameter wire collated nails of size 2.1 to 2.8 mm Dia x 32 to 65 mm long. It also accommodates 5 to 6 mm D-head diameter plastic collated nails of size 2.4 to 2.8 mm Dia x 32 to 50 mm long. The smart fire trigger mechanism requires no adjustment between a single fire as well as a bump fire. Nailer featuring tool-less depth dial enables easy depth setting for flush, proud, or deep driving applications. The 360-degree adjustable exhaust of the nailer allows exhaust to be directed away from the user for added convenience. It incorporates an easily and quickly adjustable magazine for increasing reloading speed while changing nail lengths. This clear view magazine comes with adjustable nail support. Nailer with 1/4 threaded NPT air fitting thread, has air consumption rating of 0.05 - 0.063 cubic feet/cycle at 100 psi and operates at 70 - 120 psi pressure. Nail holder angles for placing nail coils into the magazine easily. The belt hook of the nailer aids in keeping the tool close to the user, thus offering hands-free convenience. Light, compact and powerful nailer is equipped with a non-slip grip handle for added comfort and grip.

• Perfect for trim work, furniture building, and other finish applications
• Tool-less depth dial enables easy depth setting for flush, proud, or deep driving applications
• 360 degree adjustable exhaust enables exhaust to be directed away from the user
• Easily adjustable magazine increases reloading speed when changing nail lengths
• Nail holder angles to ease placing nail coils into the magazine
• The belt hook keeps the tool close to the user and provides hands-free convenience
• Smart fire trigger requires no adjustment between single fire and bump fire
• Light, compact and powerful
• Sequential or contact fire
• Clear view magazine with adjustable nail support
• Non-slip grip handle
• Both single & bump fire
• Tool-less depth dial
• 360° adjustable exhaust directs air away from the user

Specifications

• Fastener series: 16° wire collated or 15° plastic collated coil nails
• Pressure range: 70 – 120 psi
• Max. capacity: 200 - 400 nails
