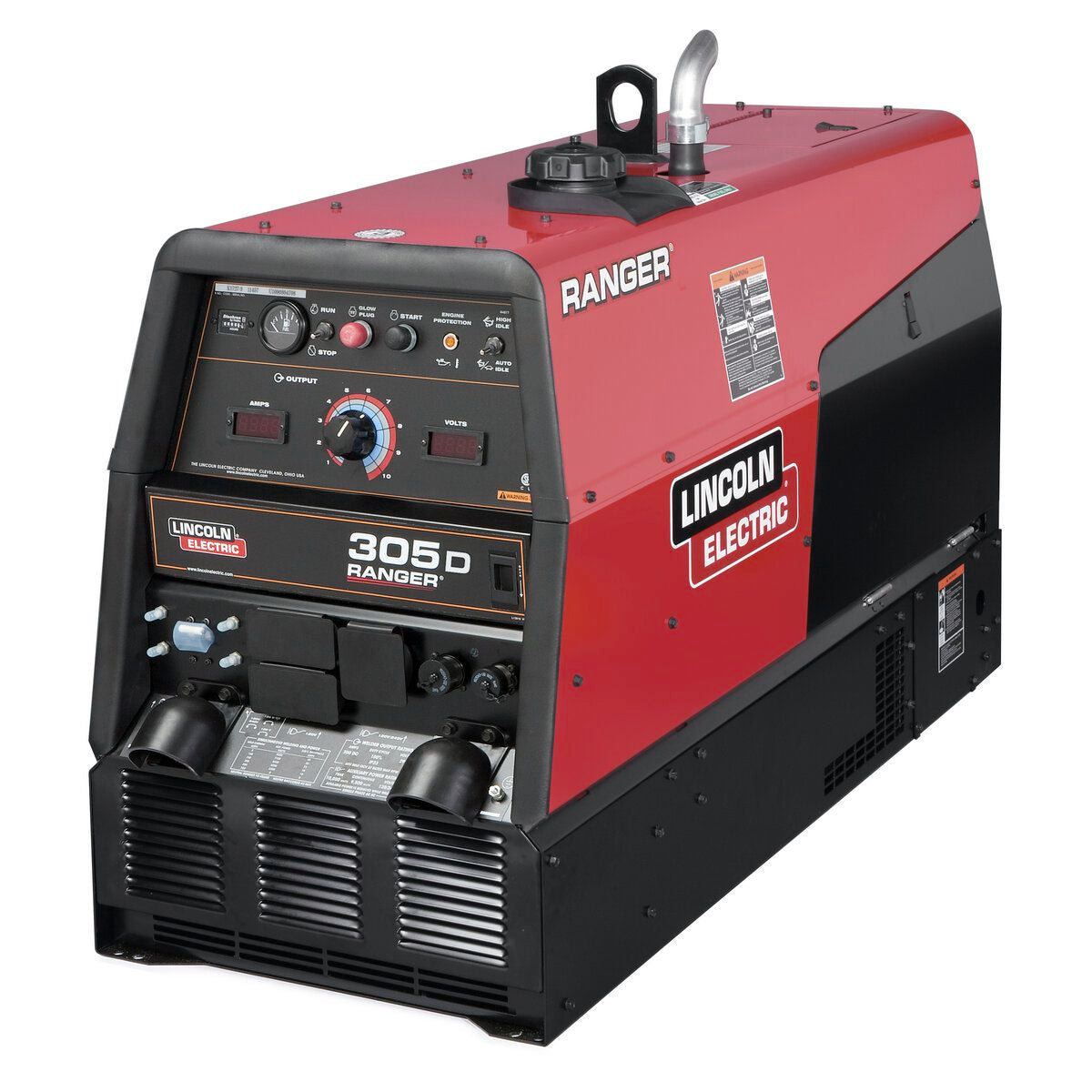

Ranger 305 D (Kubota)

A high speed, welder/generator capable of up to 305 amps of DC multi-purpose welding and 120/240 VAC single phase auxiliary power. Powered by a 18.8 hp Kubota D722 diesel engine and features patented Chopper Technology.

Choose the Ranger 305 D for extended fuel efficiency and compatibility with diesel-powered fleets. The small footprint offers up to 305 amps of multi-process welding output and 10 kW single-phase AC power for motor starting, tools, and inverter welders for extended range and process capability.

Processes

Stick, TIG, MIG, Flux-Cored

Mode

CC/CV

Polarity

DC

Output Range

20-250A TIG
14-29V CV
20-305A DC
40-300A Pipe

Rated Output

300A DC CV/29V/100%
305A DC CC/29V/100%

Engine Type and Fuel Type

Kubota
D722 EPA Tier 4
Diesel

Generator Continuous Power

9500

Generator Peak Power

10000

Horsepower

18.8

Speed

3600

Dimensions

21.5in x 29.9in x 52.3in (546mm x 759mm x 1327mm)

Weight

698lbs. (316.613kg)
